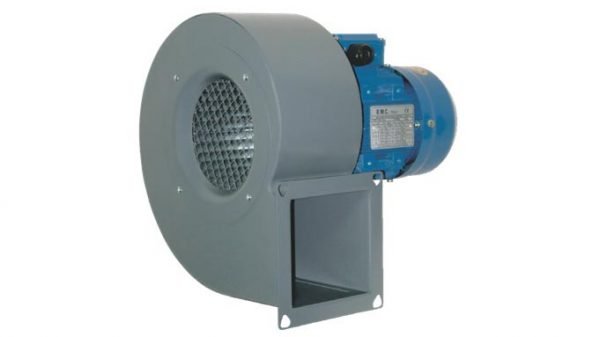

(AS-N) Sopladora centrífuga | Centrifugal blower
Área de aplicación: baja capacidad y baja presión.
Tipo de aspas: aspas curvadas hacia delante, tipo “sirocco”.
Aplicación: para aire limpio y ligeramente polvoriento, ampliamente utilizado para enfriar equipos eléctricos, generadores, extrusoras, lámparas, motores, para suministro de aire a calderas de combustible sólido, etc.
Area of application: low capacity and low pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for clean and slightly dusty air, widely used for cooling of electric equipment, generators, extruders, lamps, motors, for air supply into solidfuel boilers etc.
| L, m³/h |
| 50 – 2 200 |
| P, Pa |
| 230 – 1 400 |
For more information on the product and models click here
Area of application: low capacity and low pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for clean and slightly dusty air, widely used for cooling of electric equipment, generators, extruders, lamps, motors, for air supply into solidfuel boilers etc.
Temperature of the fluid: till 80°C for standard execution, for higher temperatures special execution of the blower is required.

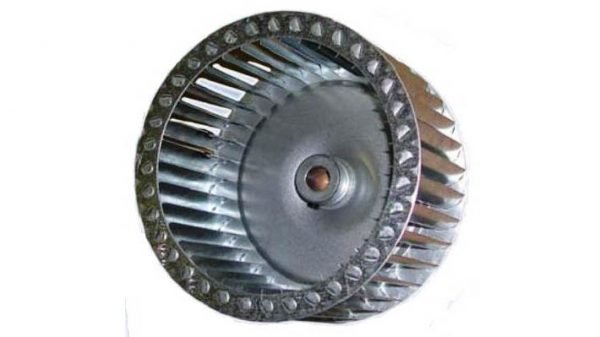

Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is made of galvanised steel.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series AS-N manufactured by Italian producer, assembled by Aton service LTD.
Unit of supply: blower execution Es 5 (direct drive, without supporting frame),protection screen on the inlet, electric motor IP55, class of isolation F.
Options and special executions: execution Es4 (direct drive, motor on the supporting frame), execution for high temperatures, sparkproof execution, etc.
