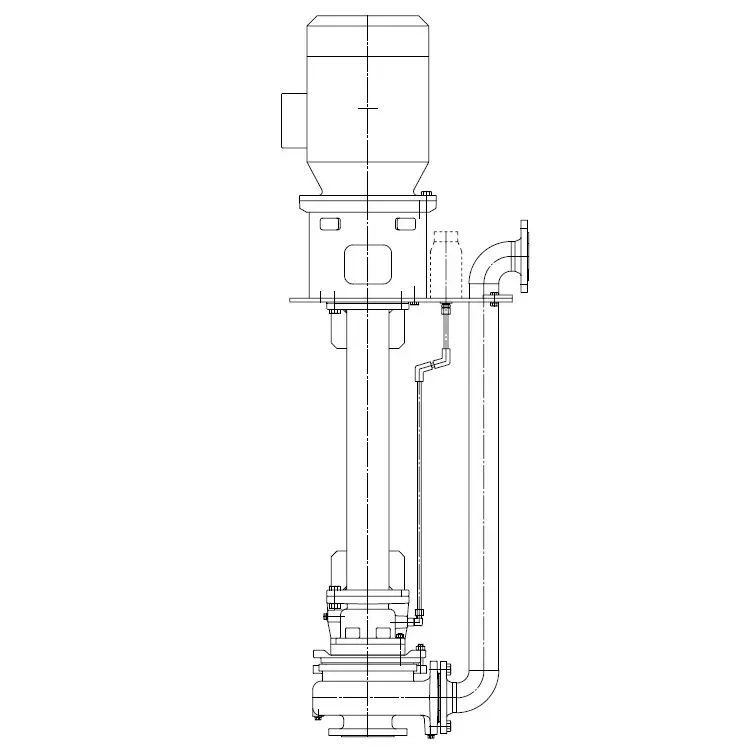

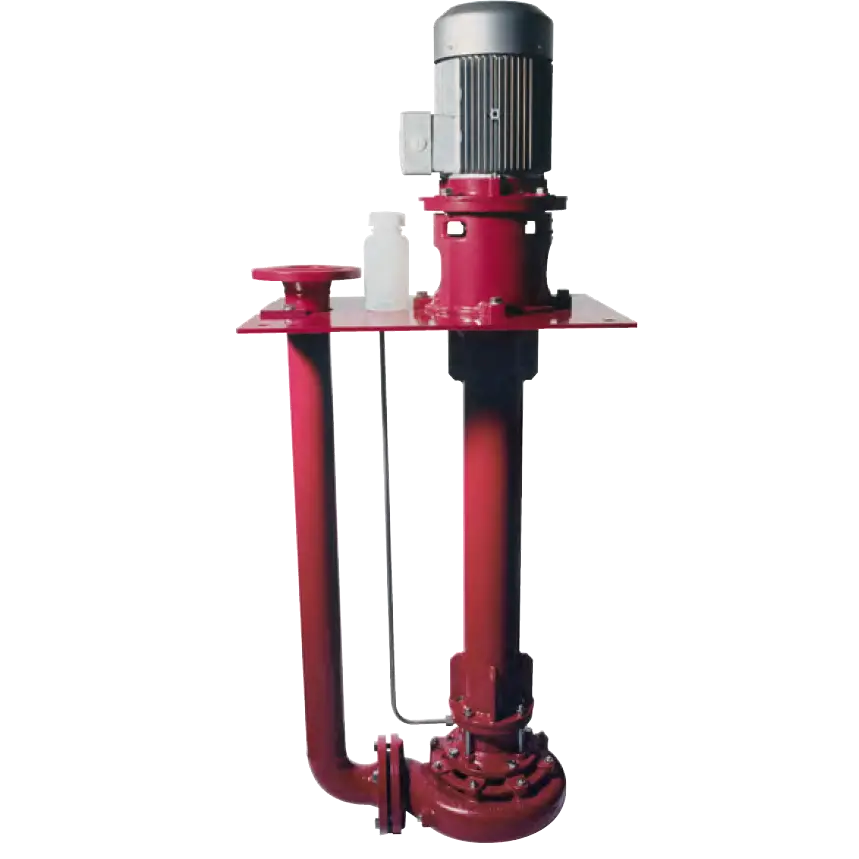

Bombas sumergibles para profundidades de inmersión extendidas Serie V | Immersible pumps for extended immersion depths V-series
Las bombas de inmersión de baja presión con cojinete intermedio y portacojinete para motores estándar se caracterizan por un diseño de fácil mantenimiento. Están disponibles en varias profundidades de inmersión de hasta 2.800 mm. Por lo tanto, la serie V (FV, NV, SV, ZV, ZHV) se puede utilizar en una amplia variedad de aplicaciones de instalación de tanques. Hay varios tamaños disponibles para que su diseño sea lo más eficiente posible. Se pueden bombear fácilmente medios químicamente neutros, así como agresivos y abrasivos, p. ej. soluciones alcalinas, disolventes y lubricantes.
Low pressure immersion pumps with intermediate bearing and bearing carriers for standard motors are characterized by a maintenance-friendly desing. Various immersion depths up to 2,800 mm are avaliable. Therefore the V-series (FV, NV, SV, ZV, ZHV) can be used in a wide variety of tank installation applications. Several sizes are avaliable to make your design as efficient as possible Chemically neutral as well as aggressive and abrasive media, e.g. alkaline solutions, solvents and lubricants can be pumped easily
For more information on the product and models click here
Confining chamber system pump type NV
Low pressure immersion pumps with intermediate bearing and bearing carriers for standard motors are characterized by a maintenance-friendly desing. Various immersion depths up to 2,800 mm are avaliable. Therefore the V-series (FV, NV, SV, ZV, ZHV) can be used in a wide variety of tank installation applications. Several sizes are avaliable to make your design as efficient as possible Chemically neutral as well as aggressive and abrasive media, e.g. alkaline solutions, solvents and lubricants can be pumped easily
Features
Robust design
Individually configurable
Maintenance-friendly design
High reliability
Various immersion depths up to 2,800 mm
Characteristic field extendable with the use of a variable speed drive
Also avaliable with 4-pole motor
Technical data
Immersible pumps with bearing carrier for standard motors

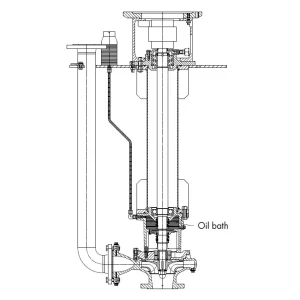

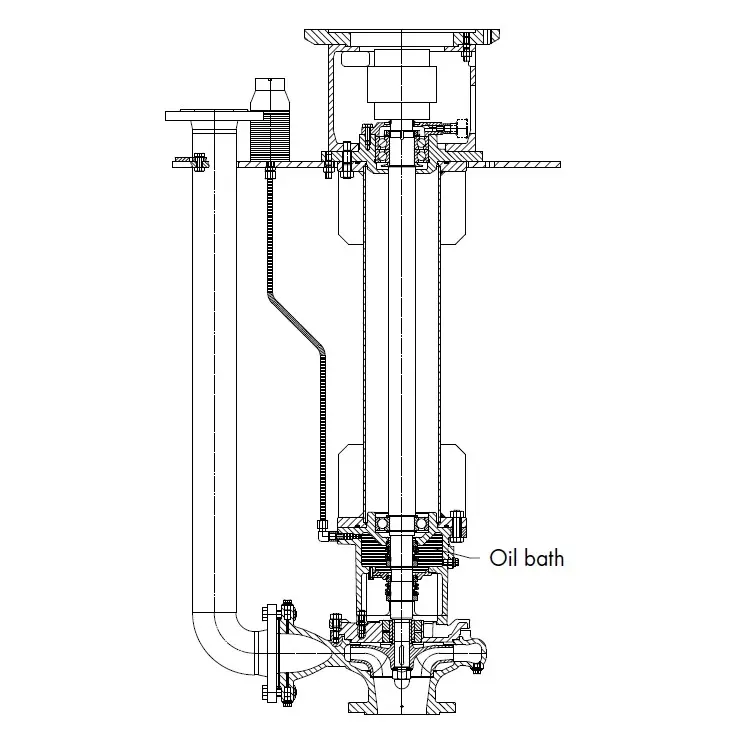

Oil-based lubricated ball bearing as intermediate bearing
Type NV, ZV, ZHV: For clean media or media with slight solids loading
Type FV, SV: For media with long fibres solids and high solids loading with up to 6 percent by weight
Flow rate up to 450 m3/h
Delivery head up to 210 m
Material options: cast irion / stanless steel (316L)
Various sealing options
Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50Hz, 460 V 60Hz, other voltages on request
