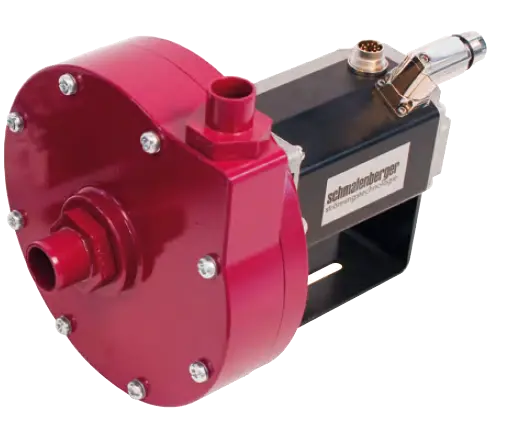

(BSZ) Bombas centrífugas pequeñas | Small centrifugal pumps

Con la nueva serie de bombas centrífugas pequeñas BSZ ofrecemos un módulo óptimo para diversas soluciones de bombeo para funcionamiento continuo. La BSZ es una bomba centrífuga rentable y de bajo consumo energético que puede integrarse en cualquier sistema gracias a su diseño compacto. Gracias a un consumo de energía mínimo y una alta eficiencia de bombeo, la BSZ logra un excelente balance energético y contribuye a la eficiencia energética de su sistema. Para su aplicación, suministramos una bomba hecha a medida, optimizada para sus requisitos específicos. En resumen, la altura de bombeo, el caudal y otros parámetros se combinan con nuestra tecnología.

With the new small centrifugal pumps series type BSZ we offer an optimal module for various pump solutions for continuous operation. The BSZ is a cost effective, energy efficient centrifugal pump that can be built into every system due to its compact design. Through minimal energy consumption and high pump efficiency the BSZ reaches an excellent energy balance and supports the energy efficiency of your system. For your application, we supply a tailor made pump, optimised for your specific requirements. In a nutshell, the delivery head, the flow rate as well as other parameters are combined with our technology.

For more information on the product and models click here

Pump type BSZ



Delivery headFlow rateElectrical power
0.3 bar3.35 l/m10 W
0.3 bar10 l/m20 W
0.5 bar10 l/m40 W
1.0 bar20 l/m200 W



With the new small centrifugal pumps series type BSZ we offer an optimal module for various pump solutions for continuous operation. The BSZ is a cost effective, energy efficient centrifugal pump that can be built into every system due to its compact design. Through minimal energy consumption and high pump efficiency the BSZ reaches an excellent energy balance and supports the energy efficiency of your system. For your application, we supply a tailor made pump, optimised for your specific requirements. In a nutshell, the delivery head, the flow rate as well as other parameters are combined with our technology.



Technical data

  • Operationg voltage:24V DC (230 V AC)
  • Performance ranges: from 10 W
  • Speed regulation from 0 till 100%
  • Integrated speed control in the motor
  • Digital and analog control
  • Integrated mounting foot
  • Protection class IP 44 (IE54)

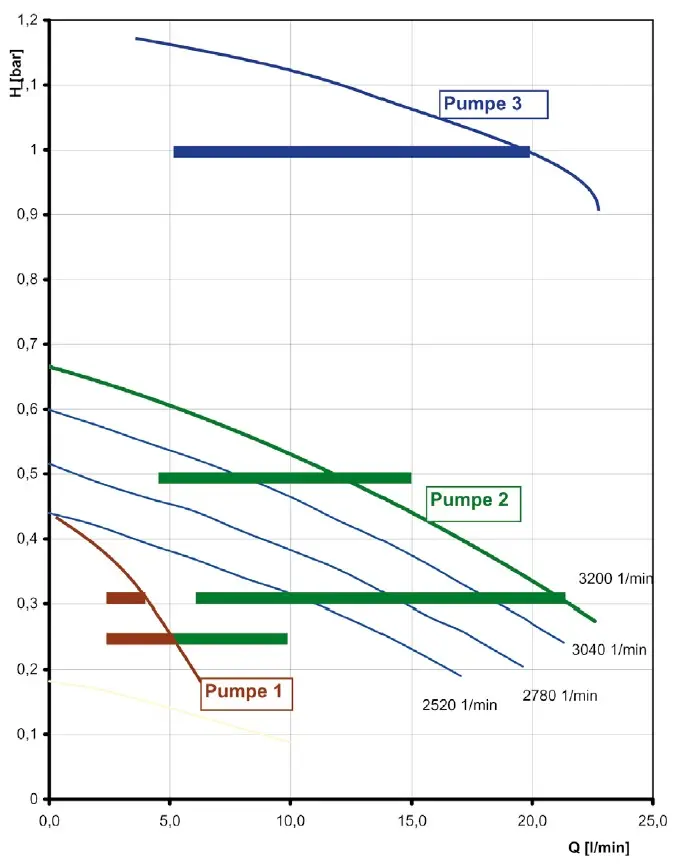

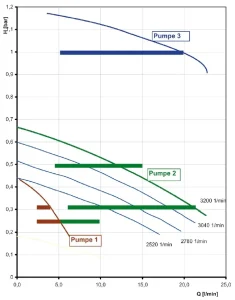

Performance curves. All values for water at 20 °C
