(KSP) Bombas centrífugas autocebantes multietapa | Multistage self-priming centrifugal pumps
La serie de bombas centrífugas multietapa KSP ha sido desarrollada para bombear medios limpios y medios con una carga ligera de sólidos, como agua, emulsiones y aceites. Ofrecemos estos tipos de bombas para caudales de 25 a 150 l/min y alturas de bombeo de hasta 100 m. Esto da como resultado un amplio rango de aplicaciones en instalaciones industriales y es ideal para su uso como bomba de alimentación para sistemas de filtrado, para bombear refrigerantes y en sistemas de refrigeración/temperatura dentro de la industria del mecanizado. Gracias a una gran variedad de materiales, las bombas KSP también se pueden utilizar en el tratamiento de agua. La etapa de aspiración integrada alcanza una altura de aspiración de 2 m en 6 s y garantiza así un suministro a corto plazo del medio a bombear. Las bombas KSP se caracterizan por su diseño compacto y modular. Con su gran variedad de posibilidades, se pueden implementar soluciones específicas para el cliente de forma rápida y sencilla. Un cierre mecánico sin mantenimiento proporciona la estanqueidad necesaria y también se puede suministrar en una gran variedad de materiales para aplicaciones específicas. La hidráulica optimizada de la bomba y los motores eficientes garantizan bajos costes de funcionamiento.
The multistage centrifugal pump series KSP has been developed for pumping clean media and media with slight solids loading such as water, emulsions and oils. We offer these pump types for flow rates of 25 to 150 l/min and delivery heads up to 100 m. This results in an extended application range in industrial installations and is ideally suited for use as a feed pump for filter systems, for pumping coolants and in cooling/temperature systems within the machining industry. Due to a wide variety of materials, KSP pumps can also be used in water treatment. The integrated suction stage achieves a suction height of 2 m within 6 s and thus ensures a short-term provision of the media to be pumped. KSP pumps are characterized by their compact design and modular design. With its wide variety of possibilities, customer-specific solutions can be implemented quickly and easily. A maintenance-free mechanical sealing provides for the necessary sealing and can also be supplied in a large variety of materials for specific applications. The optimised hydraulic of the pump and efficient motors ensure low operating costs.
For more information on the product and models click here

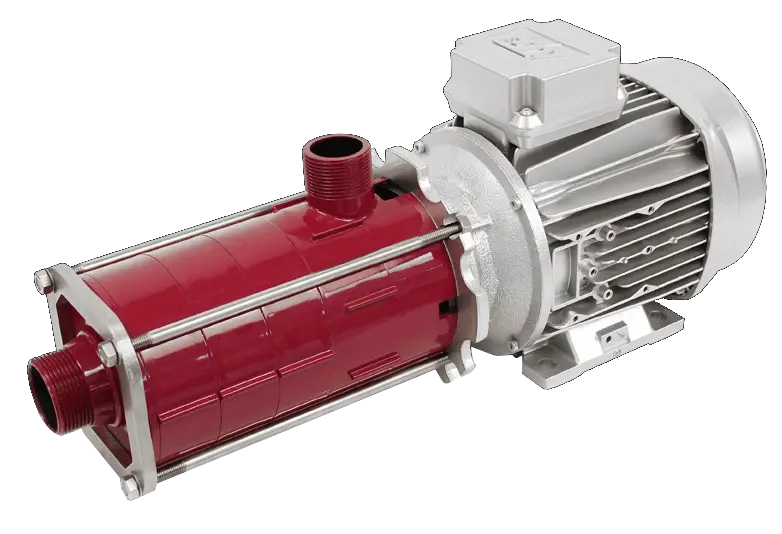

Type KSP 32-08
Flow rate max: 10 m³/h
The multistage centrifugal pump series KSP has been developed for pumping clean media and media with slight solids loading such as water, emulsions and oils. We offer these pump types for flow rates of 25 to 150 l/min and delivery heads up to 100 m. This results in an extended application range in industrial installations and is ideally suited for use as a feed pump for filter systems, for pumping coolants and in cooling/temperature systems within the machining industry. Due to a wide variety of materials, KSP pumps can also be used in water treatment. The integrated suction stage achieves a suction height of 2 m within 6 s and thus ensures a short-term provision of the media to be pumped. KSP pumps are characterized by their compact design and modular design. With its wide variety of possibilities, customer-specific solutions can be implemented quickly and easily. A maintenance-free mechanical sealing provides for the necessary sealing and can also be supplied in a large variety of materials for specific applications. The optimised hydraulic of the pump and efficient motors ensure low operating costs.
- Compact design
- Multiple applications
- Maintenance-free mechanical seal arrangement
- Individually configurable
- Simple control
- Characteristic field extendable with the use of a variable speed drive
- Self-priming
- Multistage pumps in block design
- For clean media or media with slight solids loading without air inclusion
- Flow rate up to 10 m³/h
- Delivery head up to 100 m
- Max. suction height 2 m
- Material: PPS / POM / cast iron
- Various sealing options
- Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request
- Filter technology
- Surface technology
- Machine tool manufacturing
- Process engineering
- Cooling and temperature
- control technology
- Water treatment

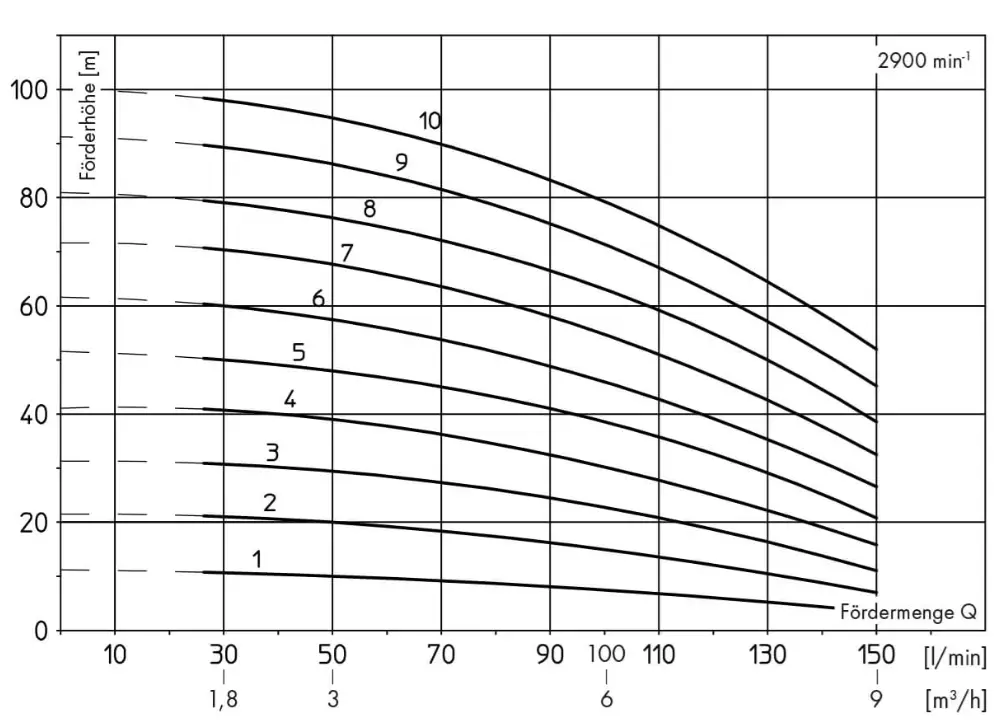

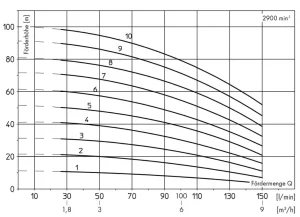

Performance characteristics (All values for water at 20 °C)
