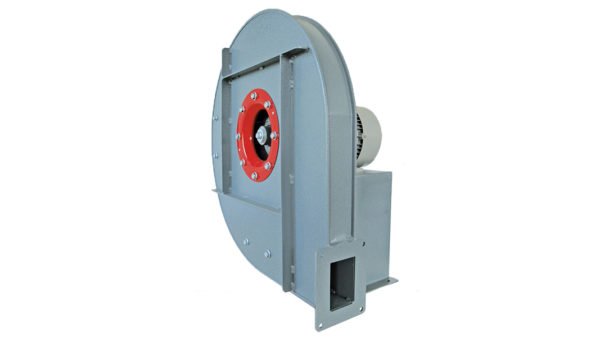

(MHR-AS) Soplador centrífugo | Centrifugal blower
Área de aplicación: baja capacidad y alta presión.
Tipo de aspas: curvadas hacia atrás.
Aplicación: para sistemas neumáticos de aire limpio. Se pueden utilizar para fundiciones, industrias alimentarias y químicas.
Area of application: low capacity and high pressure.
Type of blades: backward curved.
Application: for pneumatic systems clean air. They can be used for foundries, food and chemial industries.
| L, m³/h |
| 150 – 3500 |
| P, Pa |
| 1800 – 14000 |
For more information on the product and models click here
Area of application: low capacity and high pressure.
Type of blades: backward curved.
Application: for pneumatic systems clean air. They can be used for foundries, food and chemial industries.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.

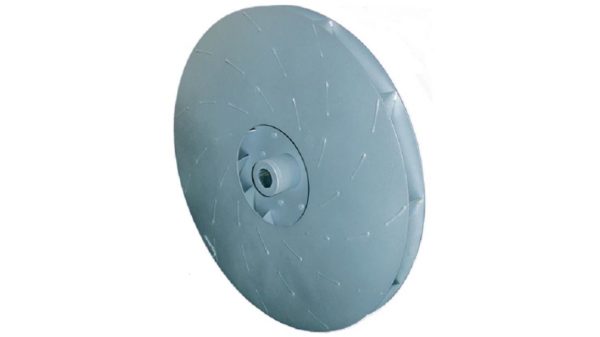

Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series MHR-AS manufactured by Italian producer, assembled by Aton service LTD..
Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen on the inlet, drain plug etc.
