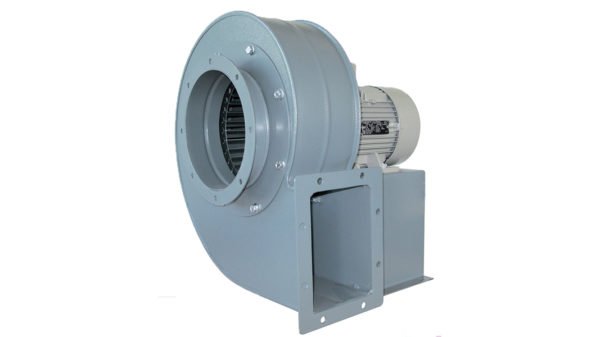

(MM-AS) Soplador centrífugo | Centrifugal blower
Área de aplicación: media y baja capacidad, media y alta presión.
Tipo de aspas: aspas curvadas hacia delante, tipo “sirocco”.
Aplicación: para ventilación en producciones y para ventilación general, en todos los lugares donde se exige el movimiento de aire limpio, ligeramente polvoriento y humo.
Area of application: medium and low capacity, medium and high pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for ventilation in the productions and for general ventilation, everywhere where the movement of clean, slightly dusty air, smokes is demanded.
| L, m³/h |
| 500 – 10 000 |
| P, Pa |
| 100 – 3 500 |
For more information on the product and models click here
Area of application: medium and low capacity, medium and high pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for ventilation in the productions and for general ventilation, everywhere where the movement of clean, slightly dusty air, smokes is demanded.
Temperature of the fluid: till 80°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc.
Blower is statically and dynamically balanced.

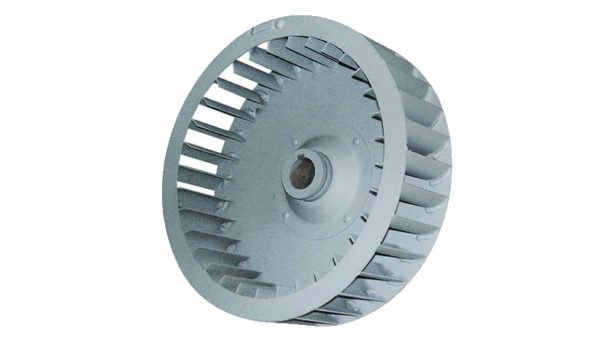

Impeller and motor produced in Italy, correspond to quality norms of EU.
Series MM-AS manufactured by Italian producer, assembled by Aton service LTD.
Unit of supply: blower execution Es4 (direct drive, motor on the supporting frame), execution Es 5 (direct drive, without supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen, drain plug, execution for high temperatures etc.
