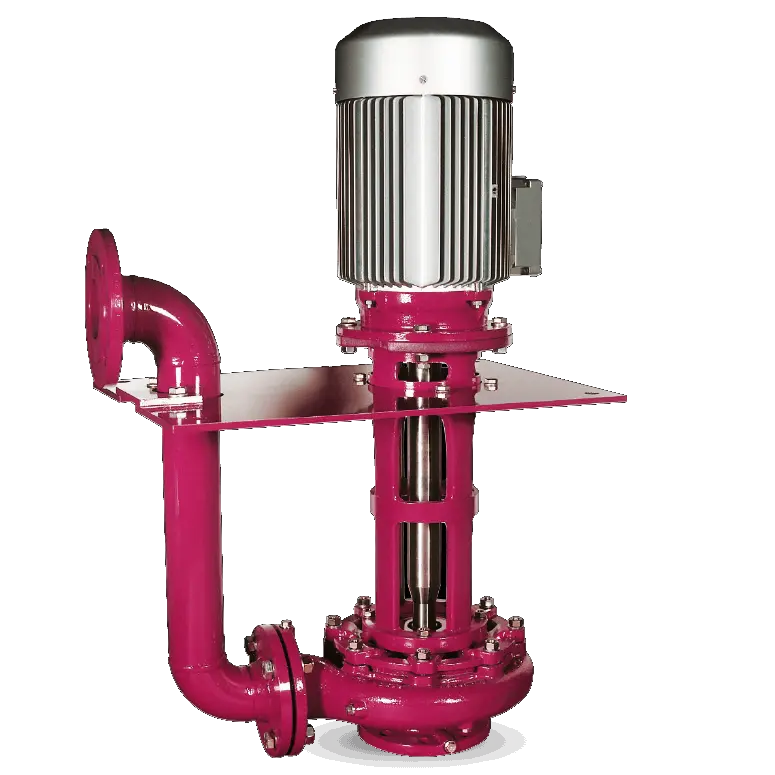

(NZ) Bombas de inmersión de baja presión | Low pressure immersion pumps
Las bombas de inmersión de baja presión tipo NZ se caracterizan por un diseño de fácil mantenimiento y pueden utilizarse en una amplia variedad de aplicaciones. Hay 15 tamaños disponibles para que su diseño sea lo más eficiente posible. Se pueden bombear fácilmente medios tanto químicamente neutros como agresivos, por ejemplo, soluciones alcalinas, ácidos, disolventes y lubricantes.
Low pressure immersion pumps type NZ are characterized by a maintenance-friendly design and can be used in a wide variety of applications. 15 sizes are available to make your design as efficient as possible. Chemically neutral as well as aggressive media, e.g. alkaline solutions, acids, solvents and lubricants can be pumped easily.
For more information on the product and models click here
Type NZ
Flow rate max: 450 m³/h
Delivery head max: 100 m
Immersion depth max: 1050 mm
Low pressure immersion pumps type NZ are characterized by a maintenance-friendly design and can be used in a wide variety of applications. 15 sizes are available to make your design as efficient as possible. Chemically neutral as well as aggressive media, e.g. alkaline solutions, acids, solvents and lubricants can be pumped easily.
Features
- Robust design
- Individually configurable
- Maintenance-friendly design
- High reliability
- Various immersion depths (450, 550, 800 or 1,050 mm)
- Characteristic field extendable with the use of a variable speed drive
- Free ball passage up to 22 mm
- Also available with 4-pole motor
Technical data

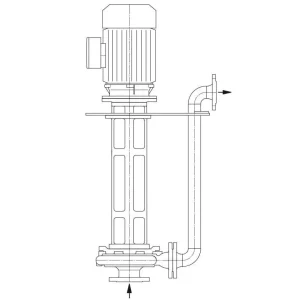

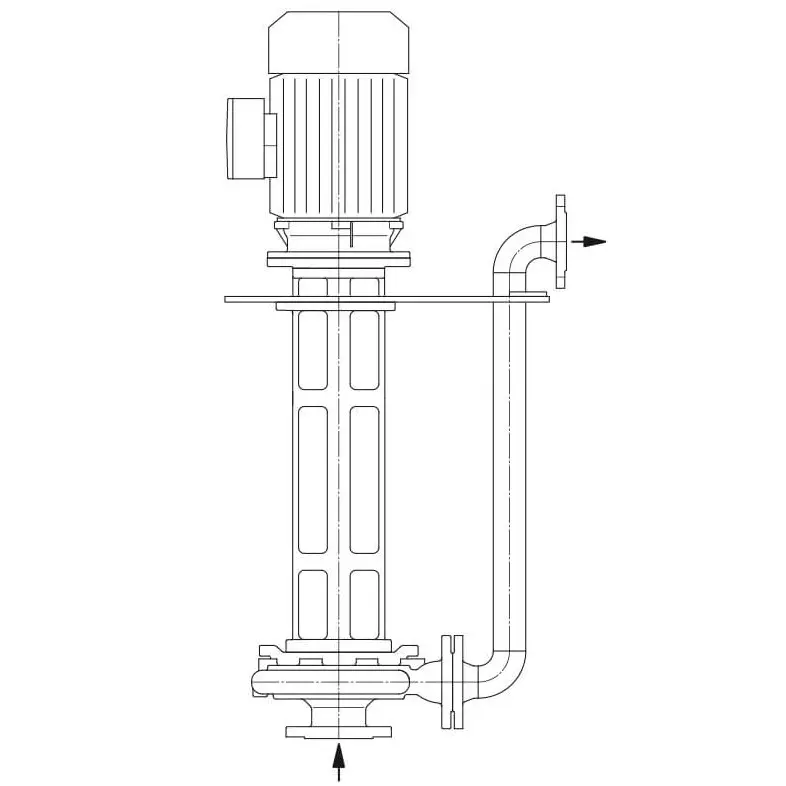

- Immersion pump in block design or with bearing carrier for standard motors
- For clean media or media with slight solids loading
- Flow rate up to 450 m³/h
- Delivery head up to 100 m
- Material options: cast iron / stainless steel (316L)
- Various sealing options
- Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request
Areas of application
- Supply pump for machine tools
- Filter technology
- Surface technology
- Process engineering
- Environmental technology

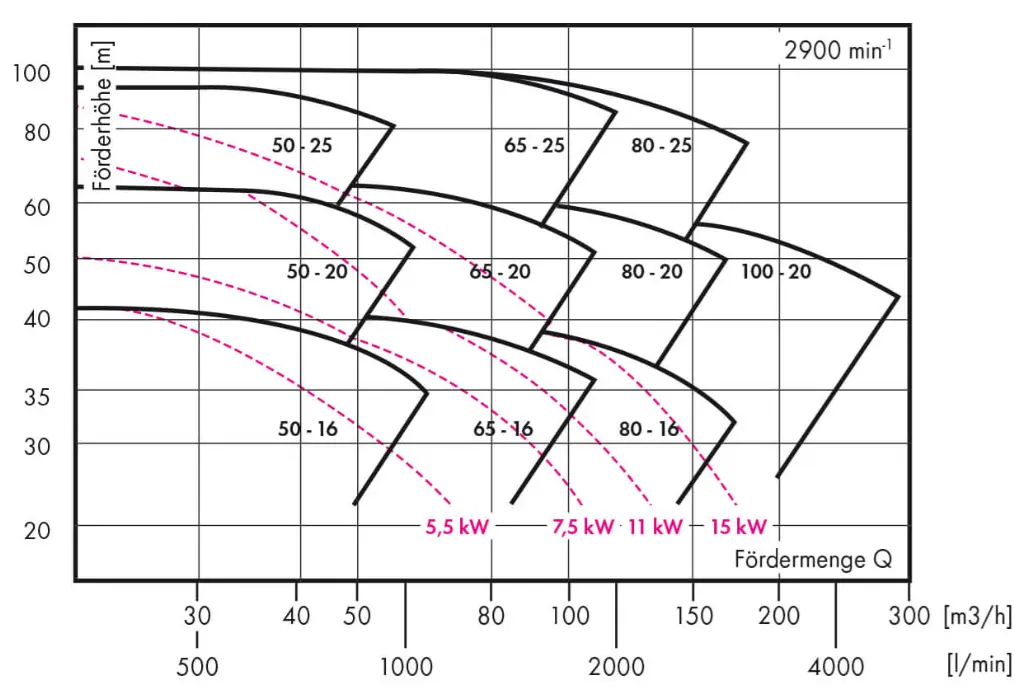

Performance characteristics (All values for water at 20 °C)
