(SM) Bombas centrífugas autocebantes | Self-priming centrifugal pumps
Las bombas centrífugas autocebantes de la serie SM son bombas monoetapa de montaje horizontal. Gracias a su diseño robusto y duradero, las bombas SM se pueden utilizar en una amplia variedad de aplicaciones. Con las numerosas variantes y opciones disponibles, las bombas satisfacen de manera eficiente diferentes requisitos de caudal y presión. Al bombear medios con una alta carga de sólidos, se puede alcanzar una altura de succión de hasta 6 m sin esfuerzo.

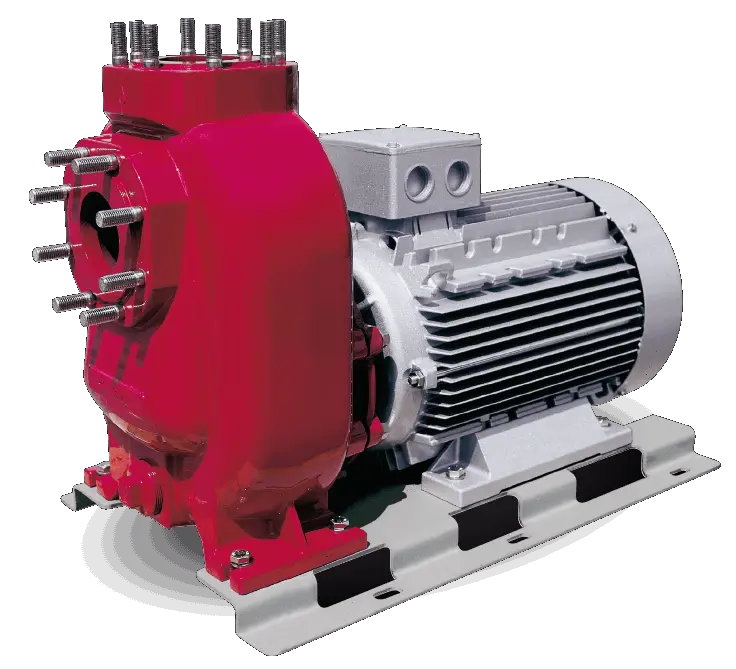

Self-priming centrifugal pumps of the series SM are single-stage horizontally mounted pumps. Because of their robust and durable design the SM pumps can be used in a wide variety of applications. With the numerous variations and options available the pumps fulfill efficiently different flow rates and pressure requirements. While pumping media with high solids loading, a suction height of up to 6 m can be reached effortlessly.
For more information on the product and models click here
Self-priming centrifugal pumps of the series SM are single-stage horizontally mounted pumps. Because of their robust and durable design the SM pumps can be used in a wide variety of applications. With the numerous variations and options available the pumps fulfill efficiently different flow rates and pressure requirements. While pumping media with high solids loading, a suction height of up to 6 m can be reached effortlessly.
- Extremely robust
- 7 different sizes
- Free ball passage up to 19 mm
- Dry run protection or sealing chamber possible
- Twin connection: threaded or flanged connection
- Self-priming up to 6 m
- For media with solids loading and high air inclusion
- Flow rate up to 120 m³/h
- Delivery head up to 58 m
- Material: cast iron / stainless steel
- Various sealing options
- Block design with bearing carrier for standard motors
- Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request
- Venting valve for a rapid delivery start
- Pump control for automatic monitoring and diagnostics
- ATEX version (on request)
- Mobile version with alternating current motor
- Version with combustion motor
- Return pump for machine tools
- Filter technology
- Surface technology
- Process engineering
- Waste water technology

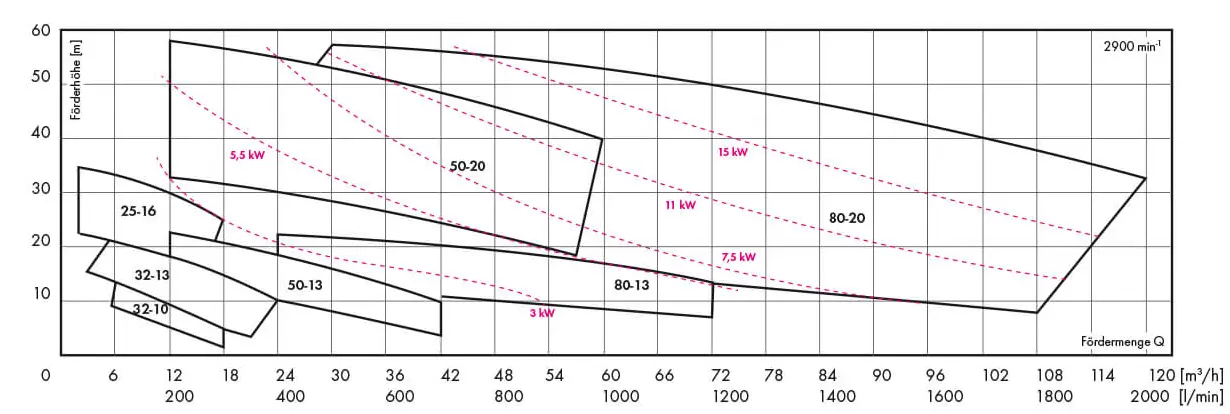

Performance characteristics (All values for water at 20 °C)
