(TH) Bombas de inmersión multietapa | Multistage immersion pumps
Las bombas de inmersión multietapa del tipo TH se caracterizan por una profundidad de inmersión variable gracias a la posibilidad de seleccionar la posición de la brida. Son ideales para bombear medios limpios o con una ligera carga de sólidos, como lubricantes, soluciones alcalinas, ácidos y disolventes utilizados en el lavado, la limpieza, el desengrasado, el decapado y la fosfatación. Opcionalmente, esta serie puede equiparse con dos o tres salidas de presión. El uso de un solo motor con múltiples salidas de presión para diferentes puntos de trabajo da como resultado requisitos de espacio mínimos en comparación con el uso de múltiples bombas.
Multistage immersion pumps type TH are characterized by variable immersion depths due to selectable flange positions. They are ideal for pumping clean media or media with slight solids loading, such as lubricants, alkaline solutions, acids and solvents used in washing, cleaning, degreasing, pickling and phosphating. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps.
For more information on the product and models click here

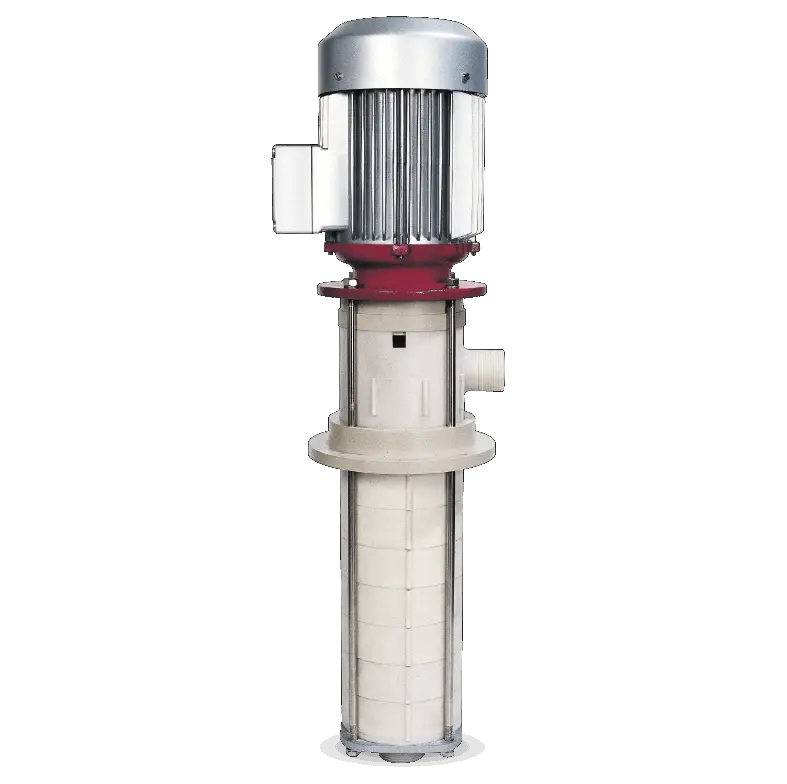

Type TH
Flow rate max: 12 m³/h
Delivery head max: 170 m
Immersion depth max: 720 mm
Multistage immersion pumps type TH are characterized by variable immersion depths due to selectable flange positions. They are ideal for pumping clean media or media with slight solids loading, such as lubricants, alkaline solutions, acids and solvents used in washing, cleaning, degreasing, pickling and phosphating. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps.
Features
- Flange and pressure connection according to DIN EN 12157

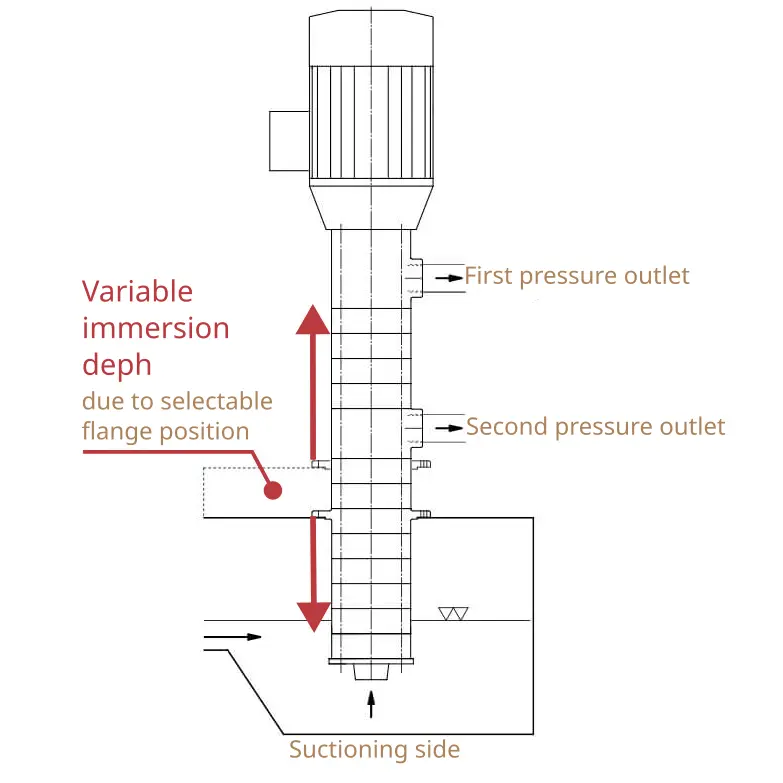

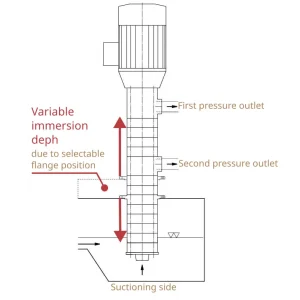

- Variable immersion depths due to selectable flange position
- Minimum space requirement
- Individually configurable
- High reliability
- Characteristic field extendable with the use of a variable speed drive
- Free ball passage up to 3 mm
- Also available with 4-pole motors
Technical data
- For clean media or media with slight solids loading
- Flow rate up to 12 m³/h
- Delivery head up to 170 m
- Material options: PPS / POM / cast iron / stainless steel (316L)
- Various sealing options
- Multistage pumps in block design
- Optional with a second or third pressure outlet
- Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request
Areas of application
- Supply pump for machine tools
- Filter technology
- Surface technology
- Process engineering
- Environmental technology

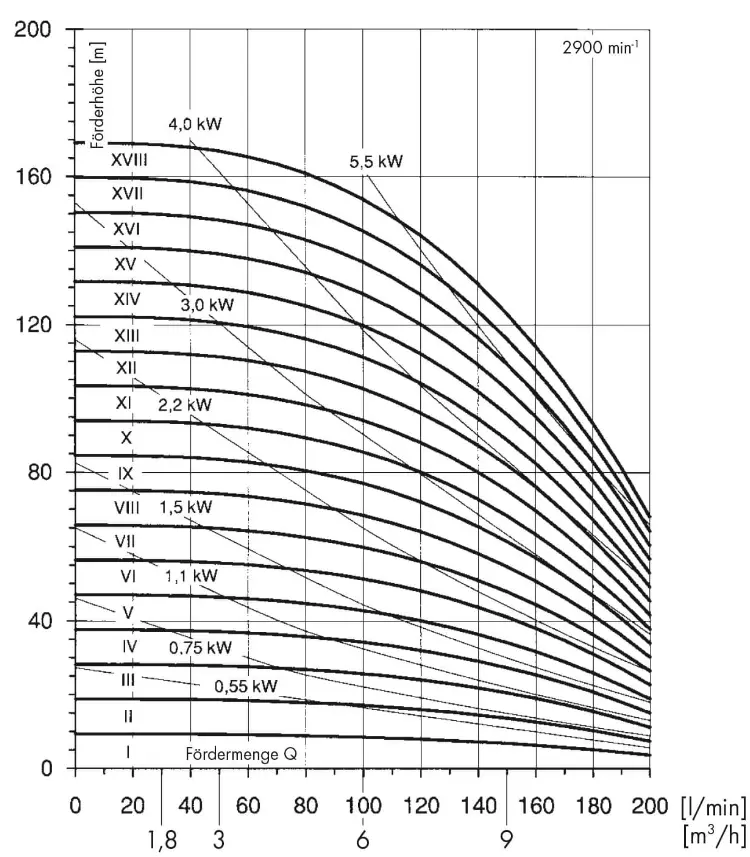

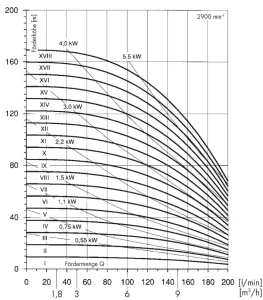

Performance characteristics (All values for water at 20 °C)
