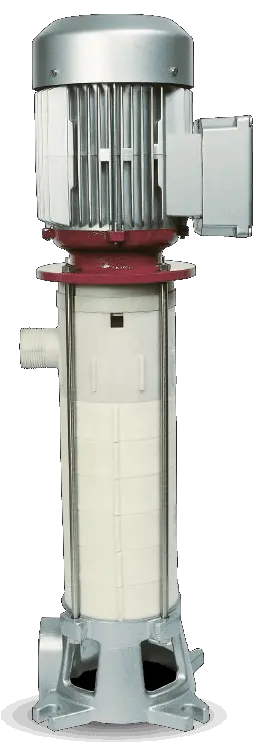

(ZHS) Bombas centrífugas multietapa de alta presión | Multistage high pressure centrifugal pumps
Las bombas centrífugas de alta presión multietapa del tipo ZHS son bombas de montaje vertical que se caracterizan por ocupar un espacio mínimo. Opcionalmente, esta serie puede equiparse con dos o tres salidas de presión. El uso de un solo motor con varias salidas de presión para diferentes puntos de trabajo permite ocupar un espacio mínimo en comparación con el uso de varias bombas. Se pueden bombear fácilmente medios tanto químicamente neutros como agresivos, como soluciones alcalinas, disolventes y lubricantes.
Multistage high pressure centrifugal pumps type ZHS are vertically mounted pumps. They are characterized by a minimum space requirement. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps. Chemically neutral as well as aggressive media, e.g. alkaline solutions, solvents and lubricants can be pumped easily.
For more information on the product and models click here

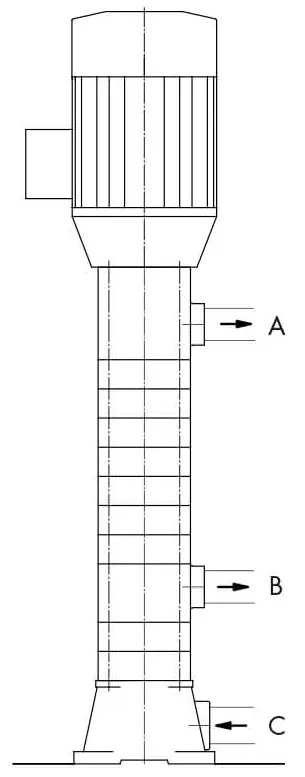

A) First pressure outlet B) Second pressure outlet C) Suctioning side
Flow rate max: 42 m³/h
Multistage high pressure centrifugal pumps type ZHS are vertically mounted pumps. They are characterized by a minimum space requirement. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps. Chemically neutral as well as aggressive media, e.g. alkaline solutions, solvents and lubricants can be pumped easily.
Features
- Minimum space requirement
- Individually configurable
- Maintenance-free design
- High reliability
- Characteristic field extendable with the use of a variable speed drive
- Free ball passage up to 5 mm
- For clean media or media with slight solids loading
- Multistage pumps in block design
- Flow rate up to 42 m³/h
- Delivery head up to 280 m
- Material options: PPS / POM / cast iron
- Various sealing options
- Optional with a second or third pressure outlet
- Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request
- Booster pump for machine tools
- Filter technology
- Surface technology
- Process engineering
- Environmental technology

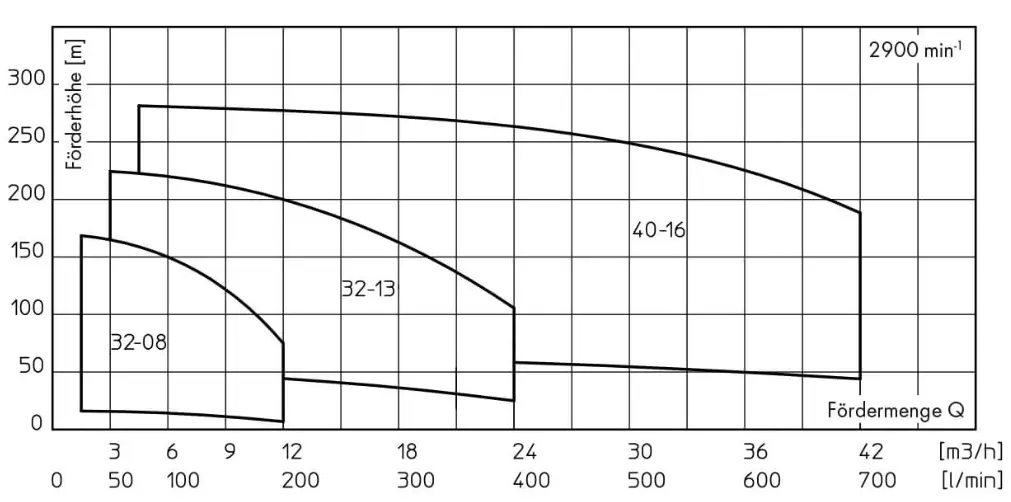

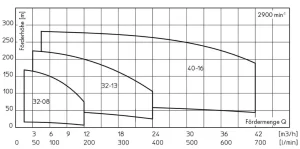

Performance characteristics (All values for water at 20 °C)
